> Cleaning Machine > Ultrasonic Cleaning Equipment > Specialized Equipment

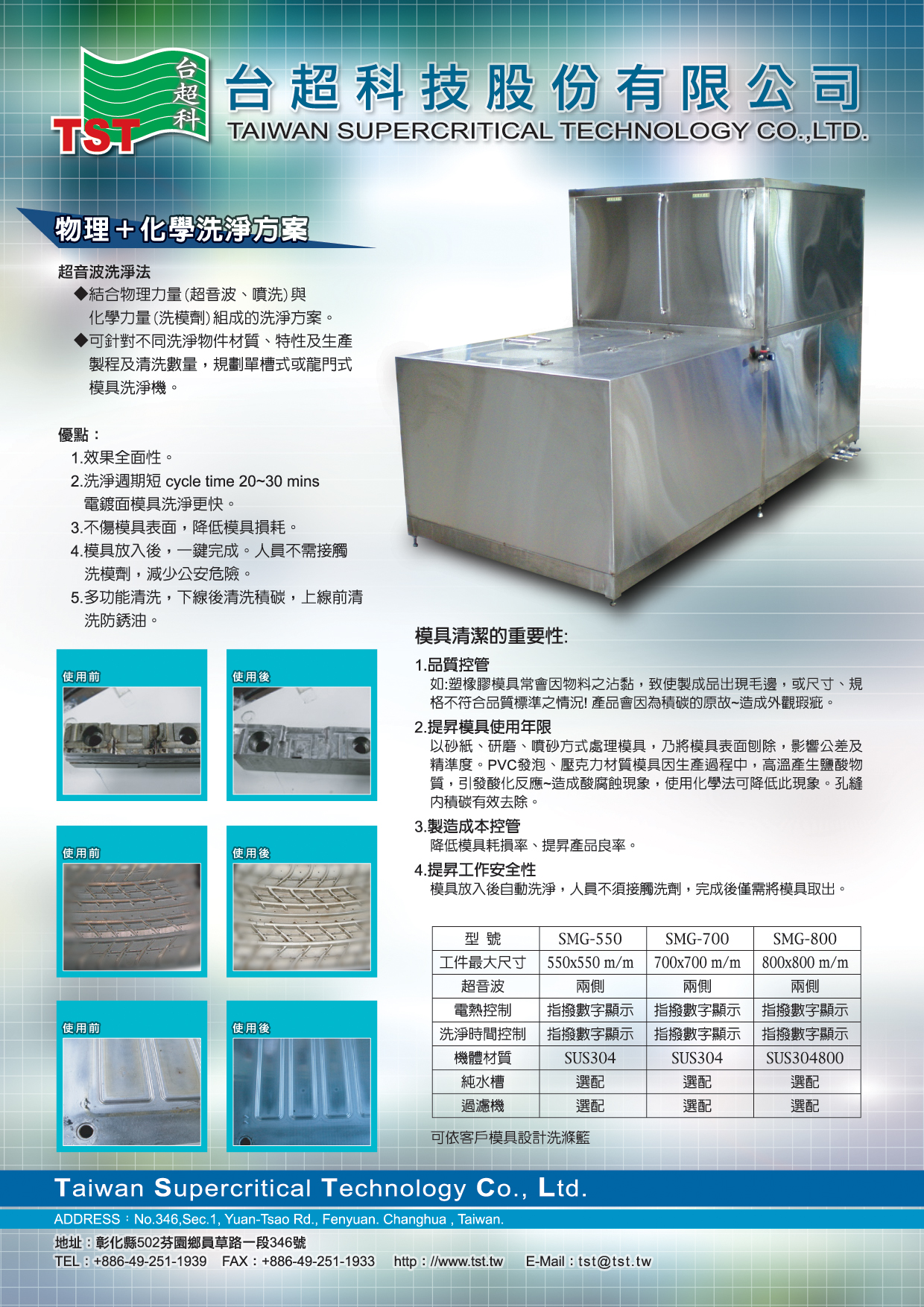

Name：Semi-automatic Rubber Mold Cleaning Machine
No：SMG-550/SMG-650/SMG-750
Info：

●Cleaning for rubber mold.
●Simple operation, just put in the mold, the machine automatically completes all cleaning processes.
●Ultrasonic cleaning + spraying cleaning, high cleaning efficiency, can save time and human resource.
●Can be used with various types of mold cleaning agents and degreasing detergent.
●Pumping back system to save the cleaning agents and water.
●Filtering system is optional to extend the using life of cleaning agent.

　　Product Description　　

Specification :

Type

Semi-automatic Rubber Mold Cleaning Machine

Model

SMG-550

SMG-650

SMG-750

Frequency

28KHz

Ultrasonic Power

2400W

Tank Material

SUS304/SUS316

Tank Size mm

550*550*420

650*650*420

750*750*420

Appearance Size mm

1700*1000*1550

2150*1000*1720

2250*1000*1950

Cleaning Agent Tank Heater

10 Kw

10 Kw

10 Kw

Degreasing Tank Heater

10 Kw

10 Kw

10 Kw

Spraying Water Tank Heater

3 Kw

3 Kw

3 Kw

Setting Temp.

RT~80℃

Filter

Optional

Optional

Optional

Water Tank

Optional

Optional

Optional

Voltage

220V/380v 3Ø 60Hz



Application :

●Cleaning for rubber mold.

--Control the quality of products.

--Extend the using life of mold.

--Reduce the cost of maintenance and human resource.

--Improve the safety of working environments.
