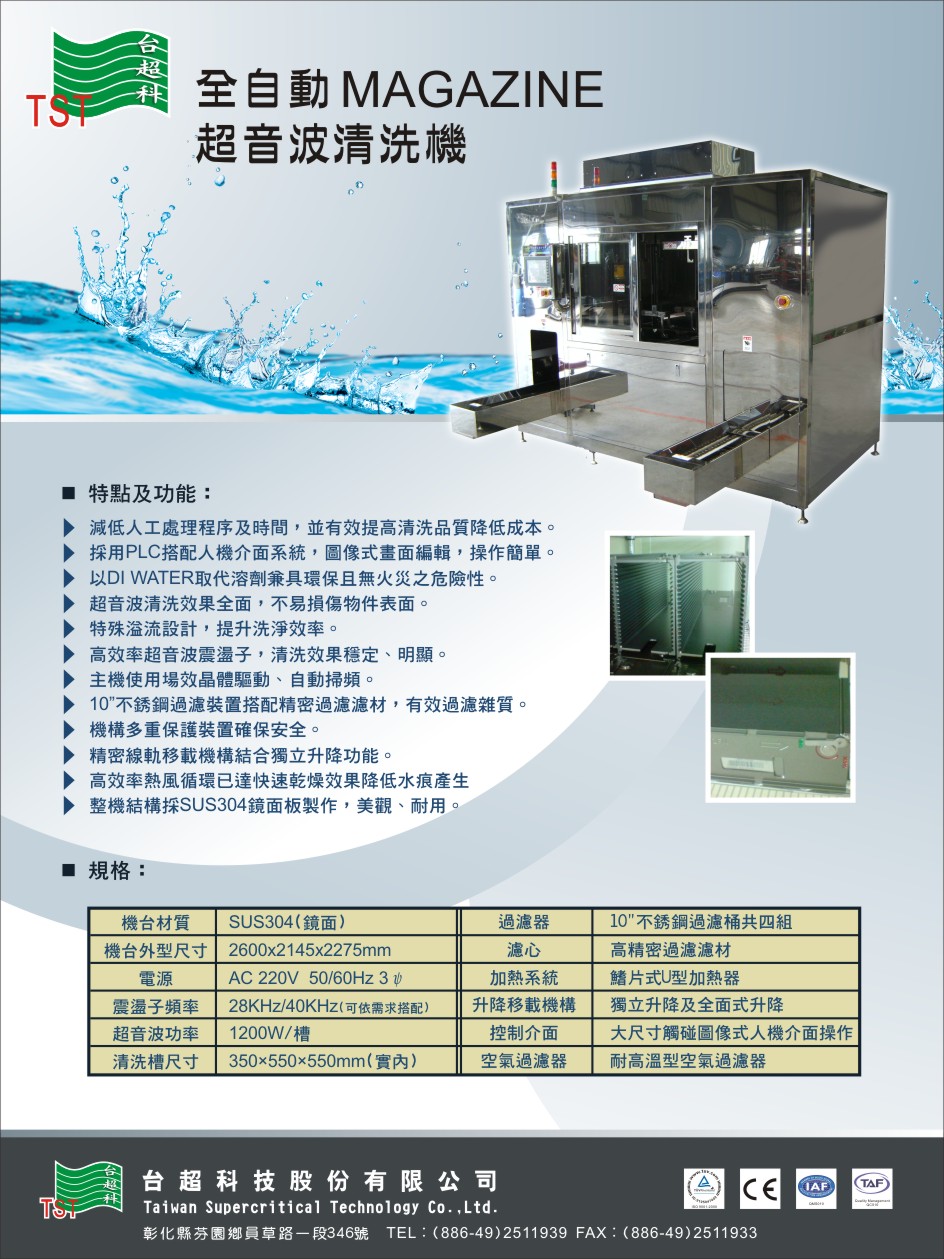

Features : ●Whole machine SUS enclosure, confirm the safety of operation environment. ●Colorful touch interface (HMI), the operation is simple and convenience. ●The size of tank and equipped functions can be adjusted according to customer’s requirements. ●The material of tank : SUS304, SUS316, SUS316L, PP, Ti. (According to using cleaning agents, provide the appropriate material and structure design) ●The design of the machine can meet the requirements of operators' height and using habits. Specification : | Automatic Magazine Ultrasonic Cleaning Machine | | Introduction | Ultrasonic Cleaning+Hot Air Circulation Drying System | | Machine Material | SUS304(NO.7/NO.8 Mirror) | | Machine Size | L : 2600mm * W : 2145mm * H : 2275mm | | Power | AC 220V 50/60Hz 3Ø | | Frequency | 28KHz/40KHz (Depend on requirement) | | Ultrasonic Power | 1200W/Tank | | Tank Size | L : 350mm * W : 550mm * H : 550mm (Depend on requirement) | | Tank Capacity | 105 L | | Magazine Size | L : 260mm * W : 130mm * H : 86mm(Max) | | Cleaning Amount | 6Pcs/Basket | | Filter | 10”SUS Filter * 4 Sets | | Filter Element | Precision Filter Element | | Heating System | SUS304 U Type Heater 2.5KW/Pcs | | Lifting Transfer Mechanism | Synchronous crane/ independent crane (Depend on requirement) | | Traversing Transfer Mechanism | Precise line rail, matching precision chain | | Exhausting Hole | 4” Exhausting Hole * 2Pcs | | Control System | Colorful Touch Interface (HMI) | | Air Filter | High Temperature Resistant Air Filter | Testing | 99.99% | At 0.3µm | | 99.97% | Application : ●Cleaning Substrate, Cassette, Subtray, Magazine and other carriers and trays. |
