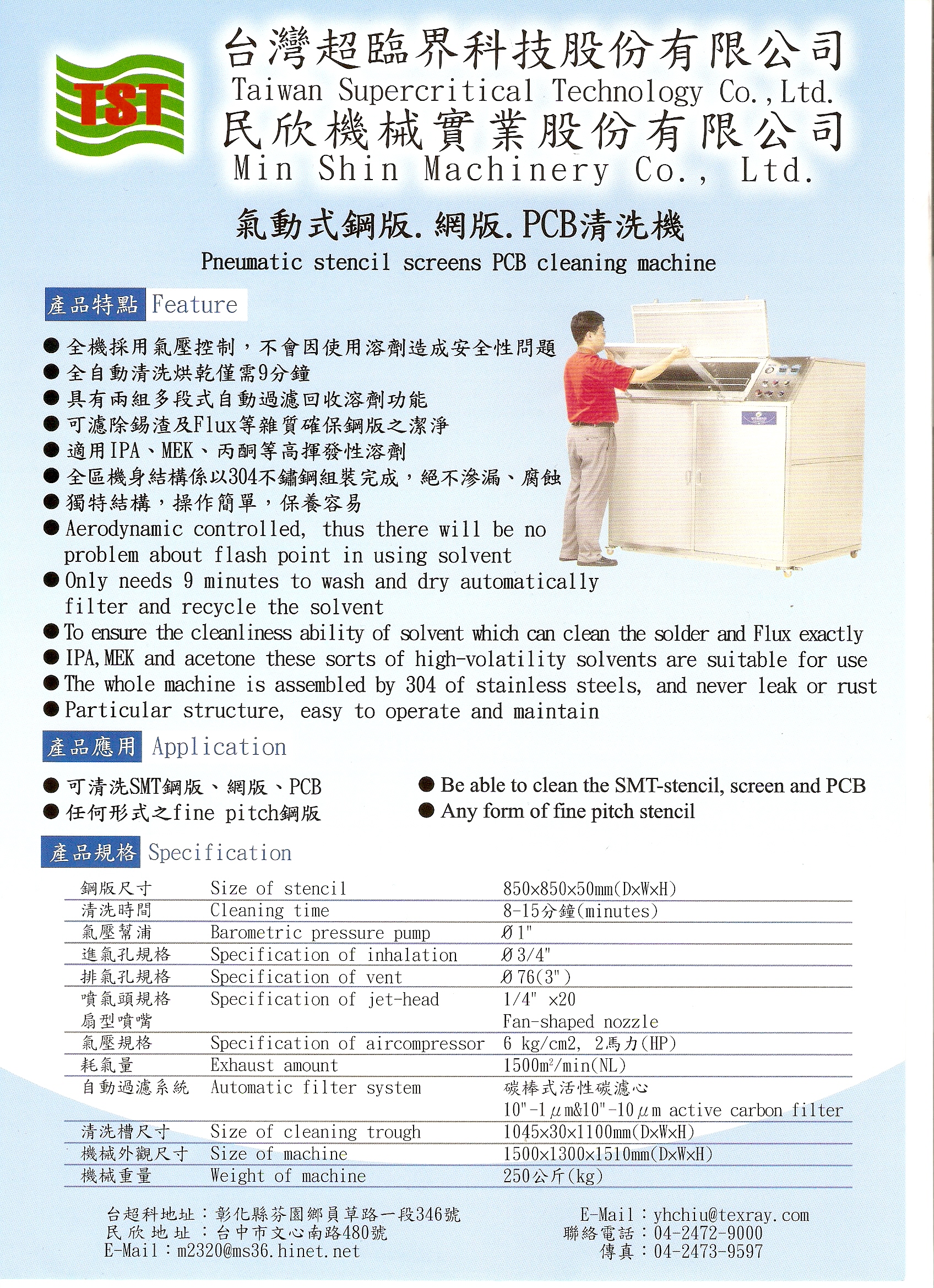

Features : ●Simple operation, can save time and human resource. ●Suitable for IPA, acetone, MEK and other highly volatile solvents. ●Can surely filter tin stains and FLUX to ensure solvent cleaning function. ●Applicable to multiple sizes of SMT-stencil, screen, PCB at the same time. ●The material of tank : SUS304 Specification : | NO. | Contents | PSS750 PNEUMATIC STENCIL / SCREENS CLEANING MACHINE | PSS1200 PNEUMATIC STENCIL / SCREENS CLEANING MACHINE | | 1 | Machine Size (W*D*H) | 700 * 1100 * 1850mm | 800 * 1500 * 2230mm | | 2 | Spraying Tank size (W*D*H) | 300 * 900 * 900mm | 300 * 1400 * 1350mm | | 3 | Suitable Stencil | 300 * 300mm - 750 * 750mm | 750 * 750mm - 1200 * 1200mm | | 4 | Operation Method | Pneumatic (Knob / Press ) | Pneumatic (Knob / Press ) | | 5 | Air Pressure | 4-7kg/cm2 | 4-7kg/cm2 | | 6 | Spraying Pump | Pneumatic 1" | Pneumatic 1" | | 7 | Timer | FESTO Pneumatic Timer | FESTO Pneumatic Timer | | 8 | Air Consumption | 0.96 m3/min | 0.96 m3/min | | 9 | Pump Flowrate | 40 - 90L/min | 90L-120L/min | | 10 | Cleaning Method | Both-side Spin-spraying | Both-side Spin-spraying | | 11 | Solvent Filter | SUS304 * 1 Set | SUS304 * 3 Set | | 12 | Suitable Agents | Solvent | Solvent | | 13 | Liquid Storage Tank | SUS304 / 40L | SUS304 / 35L * 2PCS | | 14 | Minimum Solvent Requirement | 20L | 35L | | 15 | Exhausting Hole | 2.5" * 1 PCS | 2.5"/6” * 1 PCS | | 16 | Drain Pipe | 1/2" | 1/2" | | 17 | Operation Signal | Red/ Yellow/ Green | Red/ Yellow/ Green | | 18 | Machine Materials | SUS304 | SUS304 | | 19 | Machine Weight | 200KGS | 260KGS | Application : ●Cleaning for SMT-stencil, screen, PCB and any form of fine pitch stencil. |
